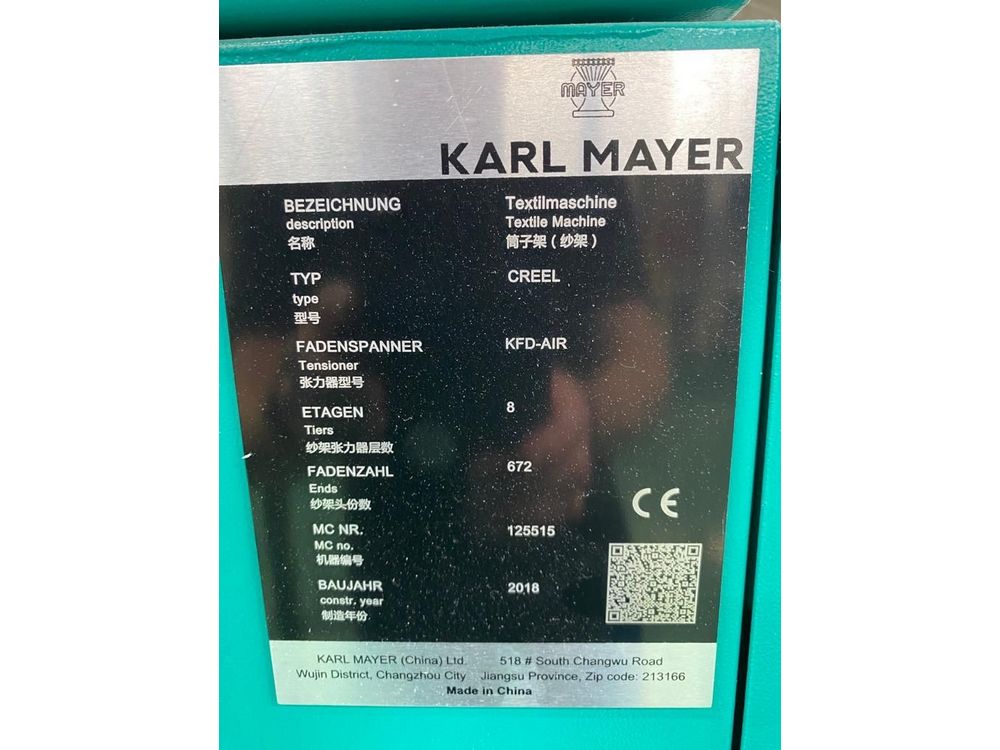

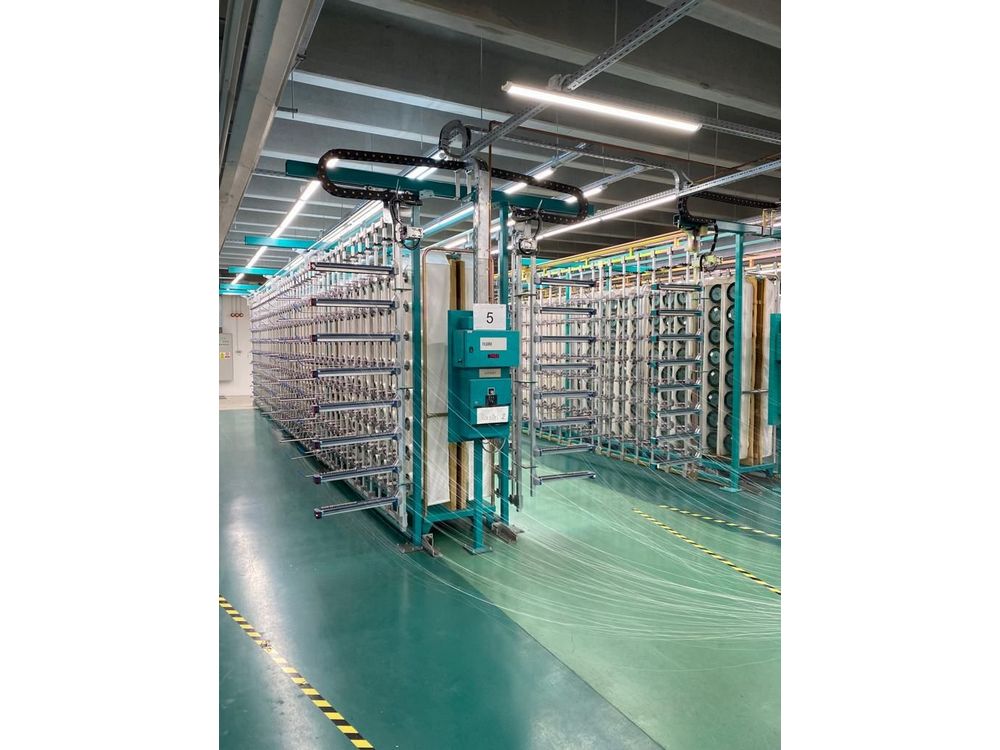

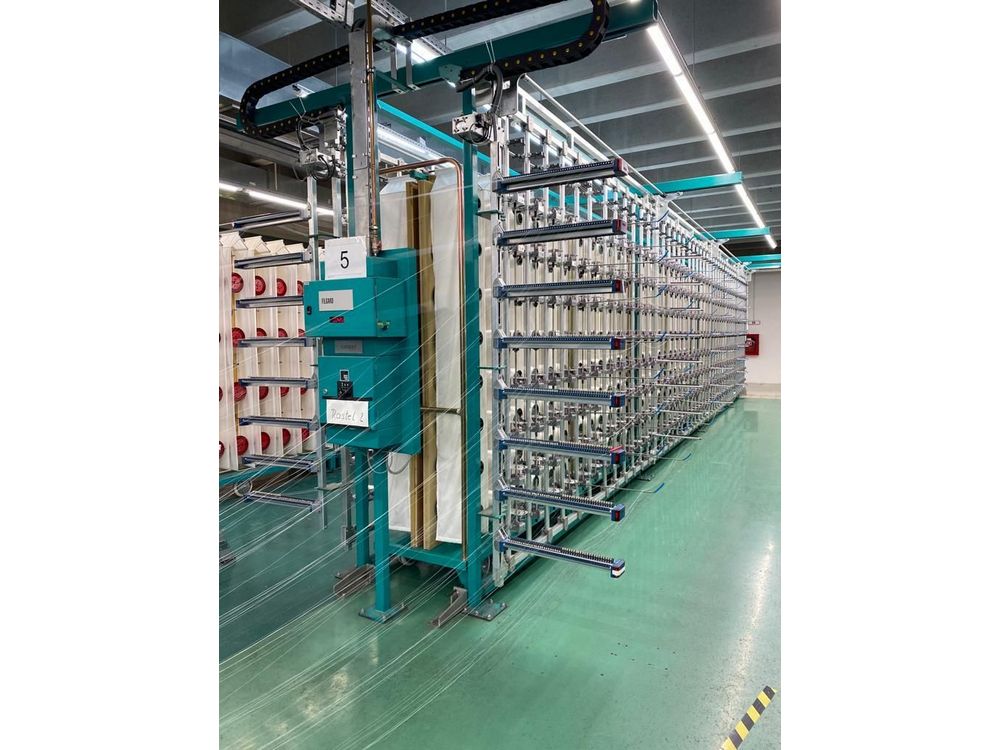

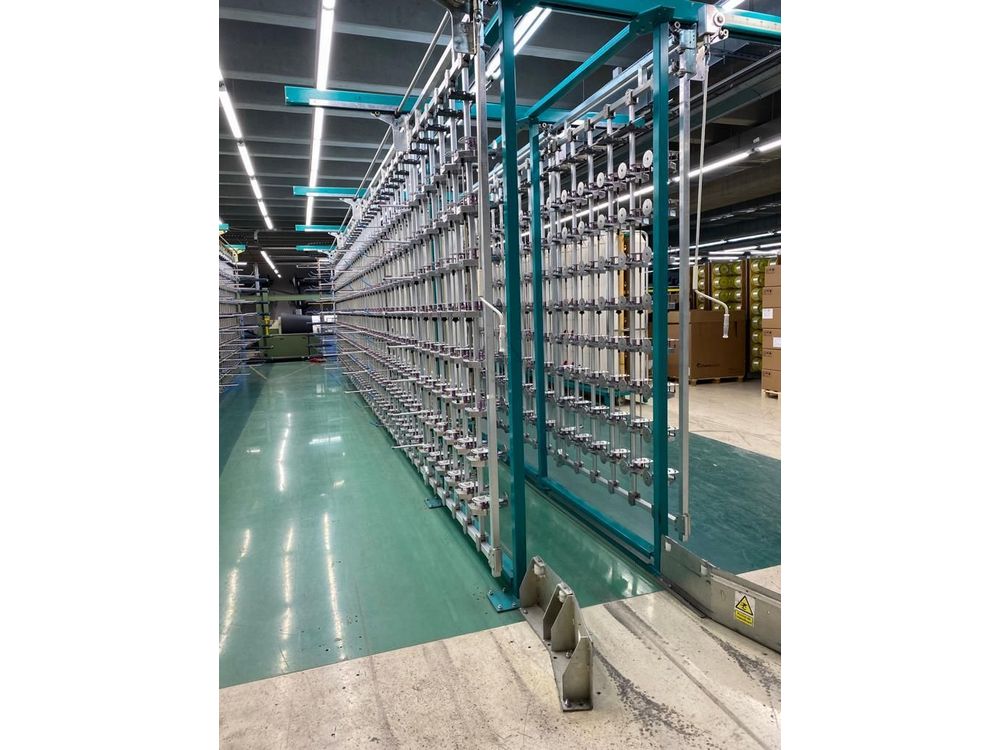

KARL MAYER warping creel for filaments
Type GW-F-672-8-270/270-USH-220KFD-AIR-K-FG
- 672 ends
- trolley type, each with 96 positions per trolley
- 7 trolleys in creel and 7 trolley as spare
- 8 rows high
- inside loading outside discharge
- max. pitch Ø 270 mm

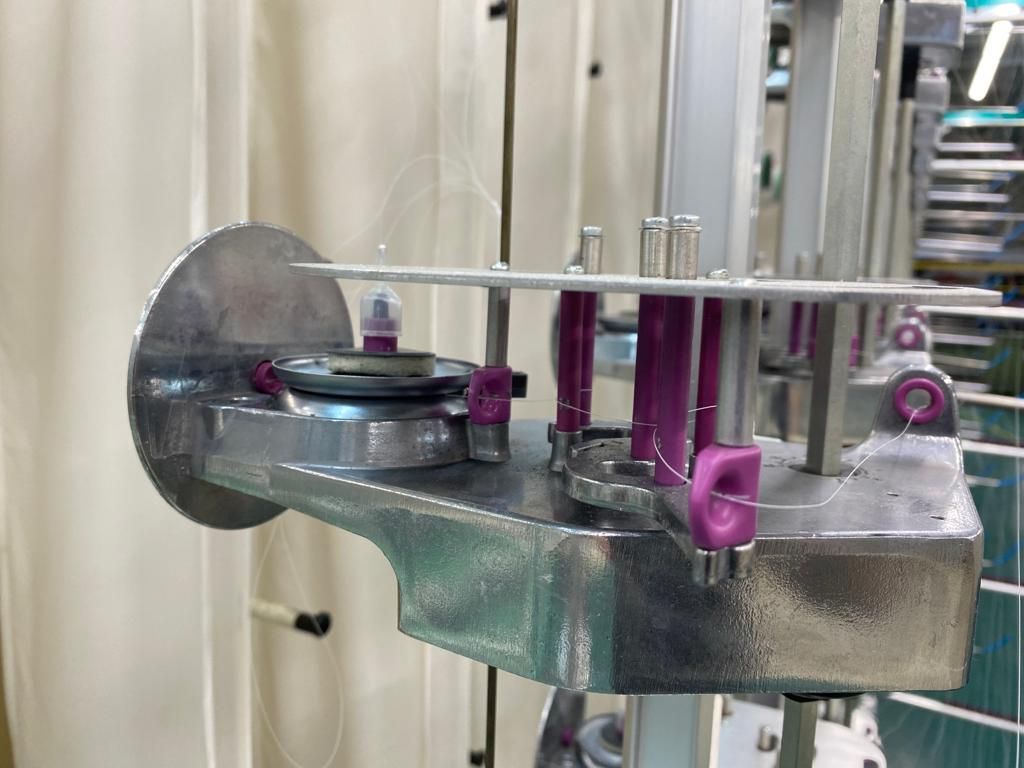

- Mayer KFD AIR – 100cN tension units
- with FILGUARD stop motions at the tension units
Creel Length: 15600mm
Creel width: 4000mm
Creel height: 2600mm
Year of Manufacture: 2018
